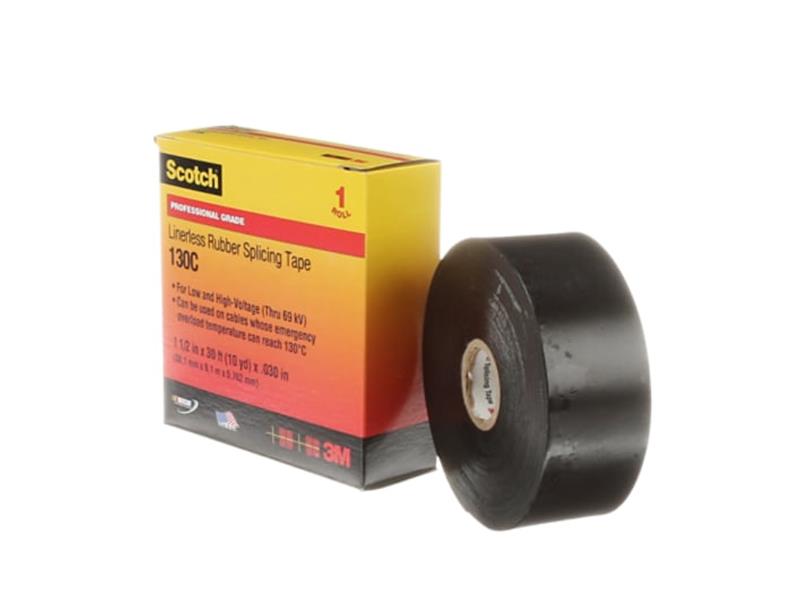

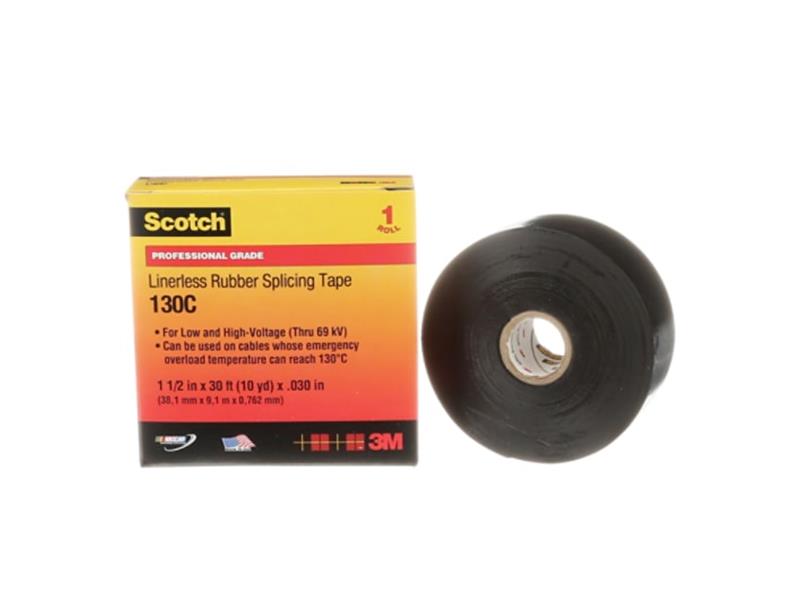

Scotch® Linerless Rubber Splicing Tape, 130C, black, 30 mil (0.76 mm), 1 1/2 in x 30 ft (38.1 mm x 9.1 m), professional grade

3m | Mfg. Part #: 7000006086

*** Minimum Order QTY - 12 *** Scotch® Linerless Rubber Splicing Tape is a highly conformable tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and a self-fusing, ethylene propylene backing. The tape provides primary insulation for solid, dielectric insulated cables rated through 69 kV. This tape is designed for low and high voltage, bus bar insulation, end sealing of cables, and jacket repair applications. It has outstanding mechanical and electrical properties that offer moisture seal and void-free buildups. This tape is ASTM Approved and RoHS 2011/65/EU Compliant. Features Highly conformable, rubber resin adhesive and the self-fusing, ethylene propylene rubber backing provides UV resistance Provides an excellent thermal dissipation of splice heat Excellent electrical and mechanical properties offer a moisture seal and void-free buildups Colour: Black Withstands temperatures up to 194°F (90°C) Extended Specifications **** Adhesive Type Rubber Application Insulation Application/Industry Appliance and Fixture Backing (Carrier) Material Ethylene Rubber Backing (Carrier) Thickness (Imperial) 30.0 mil Backing (Carrier) Thickness (Metric) 0.76 mm Color Family Black Dielectric Strength 750.0 V/mil Elongation at Break 850% Features Self-sticking Insulation Resistance >10^15ohms Maximum Operating Temperature 90.0 °C Maximum Operating Temperature (Fahrenheit) 194.0 °F Minimum Operating Temperature 0.0 °C Unit Length 30.0 ft Overall Length (Metric) 9.1 m Unit Width 1.5 in Overall Width (Metric) 38.1 mm Color Black Product Markets Electrical Construction Rolls per Carton 1 Rolls per Case 12 Shelf Life 5.0 yr Tape Grade Premium Tensile Strength (Imperial) 250.0 psi Tensile Strength (Metric) 1723.0 Kilopascal Total Tape Thickness without Liner (Imperial) 30.0 mil Total Tape Thickness without Liner (Metric) 0.76 mm UV Resistant Yes Voltage Rating 69 kV ECCN EAR99 Country of Origin United States
