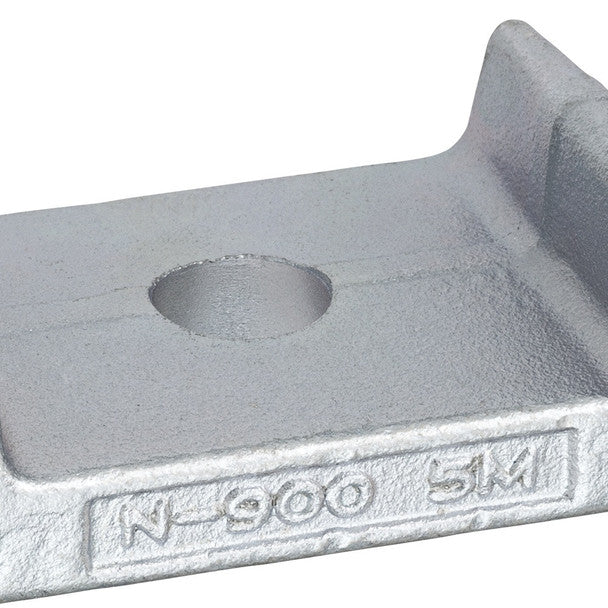

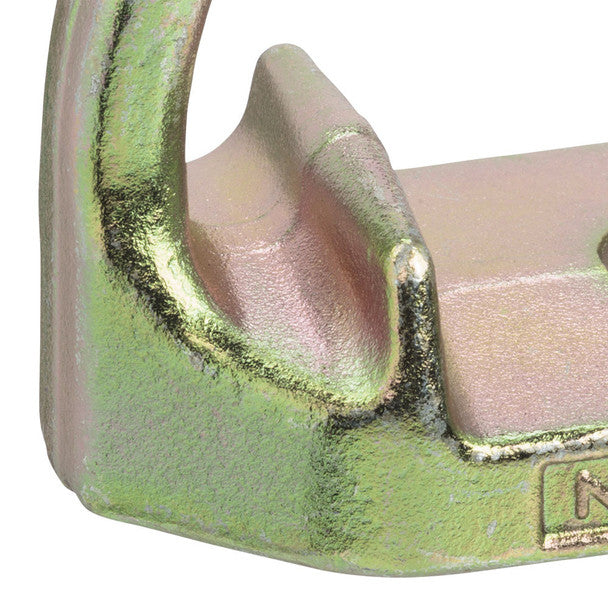

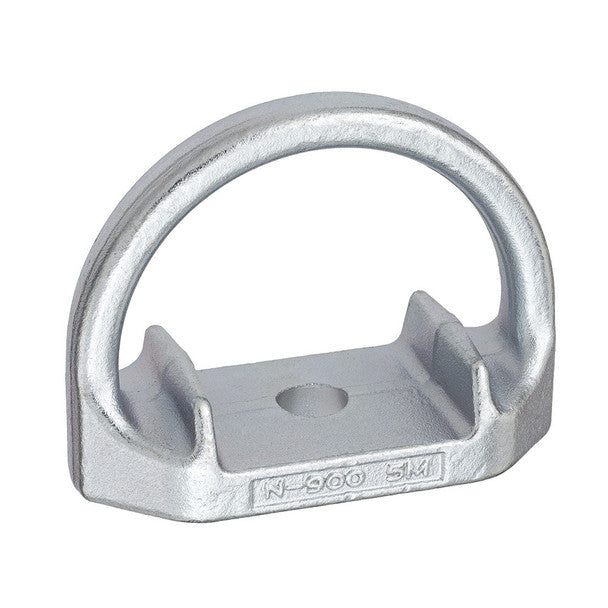

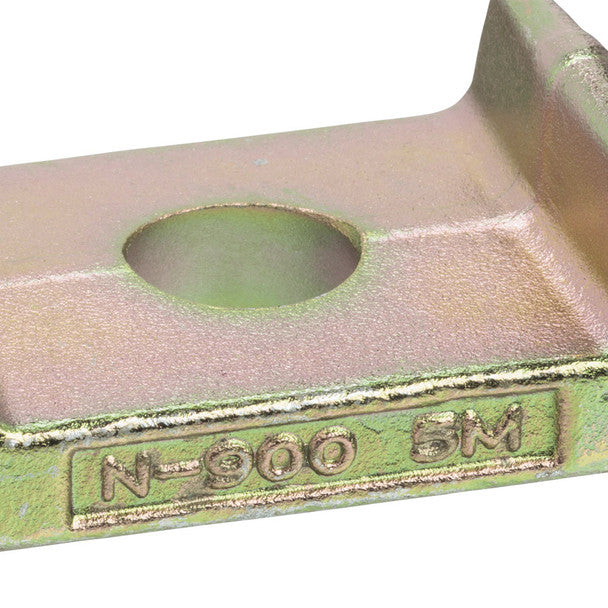

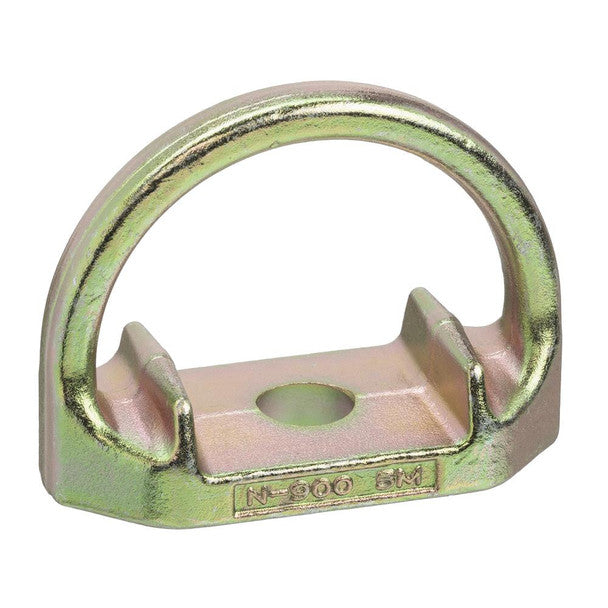

PeakWorks - Permanent Anchorage

Description
A complete fall arrest system requires three primary components; approved full body harness connector and anchorage connector. Peakworks anchorage connectors are made of high quality materials that allow them to meet the most recent ANSI CSA and OSHA requirements.

Durable: Built from top quality materials ensuring high strength and durability to stand up to the toughest environments; The anchor should be located directly above the worker to prevent swinging
Load Support: This permanent steel anchorage provides a secure point of attachment for a complete fall arrest system and is built with a minimum tensile strength of 5000 lb. with a 1/2" diameter
Certified: These anchors can be connected to a wide variety of materials such as steel wood and concrete and effectively meet ANSI Z359.18 CSA Z259.15 and OSHA requirements
Technical Specifications
Application: Concrete, Steel, Beam
Category: Permanent
Standards: ANSI Z359.18, CSA Z259.15, OSHA
End Configuration: D-Ring
Hole Size (in.): 1/2", 5/8" , 3/4"
Hole Size (mm.): 13 mm, 16mm, 19mm
Minimum Tensile Strength: 5,000 lbs.
Total Weight Capacity (lb.): 310 lbs.
Total Weight Capacity (kg.): 141 kgs.
