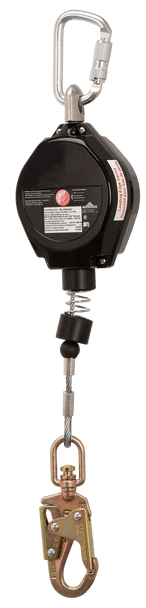

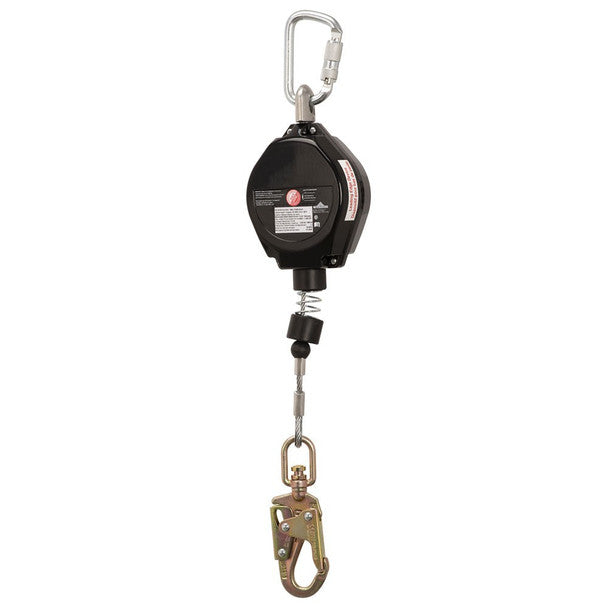

PeakWorks - 20-FT Leading Edge SRL - Single Leg Web with Snap - New CSA

Description

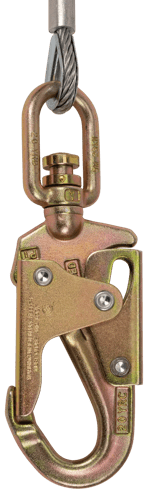

PeakWorks offers a new series of self-retracting lifelines that are third-party certified to the newest CSA Z259.2.2 standard for leading-edge applications (LE) and for overhead use. Leading-edge SRLs are designed to protect a worker when working near an edge and a fall hazard exists. They provide additional protection against sharp or abrasive surfaces found on many construction sites. The lightweight durable aluminum housing unit is approved for use in vertical and horizontal applications. The attachment points include a swivel eye on housing and double-action locking snap hooks with fall indicator to connect to the worker’s fall arrest D-ring.

Leading Edge (LE) self-retracting lifelines are designed to protect the worker when operating near an edge and where a fall hazard exists that could cause the lifeline to come into contact with the edge
Leading Edge SRLs provide additional protection against sharp or abrasive surfaces found on many construction sites
A Leading Edge SRL can be mounted below a worker's fall arrest D-Ring (please refer to instruction manual for details)
All LE products are clearly marked to ensure the correct SRL is used for Leading Edge applications
The anchor point incorporates a heavy-duty durable and convenient swivel eye
Technical Specifications
Anchor Hook Material: Steel
Anchor Hook Type: Carabiner
Average Arrest Force: 4.12kN (926 lbf)
Body Hook Type: Snap Hook
Capacity (kg.): 141
Capacity (lb.): 310
Standards: CSA Z259.2.2-2017, ANSI Z359.14-2014, Class B
Class Type: B
Color: Black
Gate Opening (in.): 3/4
Gate Opening (mm.): 19
Housing Material: Aluminum
Leading Edge: Yes
Leg Type: Single
Length (ft.): 20
Length (m.): 6.09
Lifeline Material: Galvanized Steel
Maximum Total Arrest Distance - Non-Leading Edge application (in.): 12
Maximum Total Arrest Distance (m): 0.31
Minimum Fall Clearance - Non-Leading Edge application (ft.): 9
Minimum Fall Clearance - Leading Edge application (ft.): 16
Minimum Fall Clearance - Leading Edge applications (m): 4.87
Minimum Fall Clearance - Non-Leading Edge application (m): 2.74
Minimum set back distance from edge - Leading Edge application (cm): 50
Minimum set back distance from edge - Leading Edge application (in.): 20
Rescue and Recover - SRL-R: No
Webbing/Cable Thickness (in.): 0.21
Webbing/Cable Thickness (mm.): 5.5
